Spare Parts E-Drive

At this point you have the option to send us a spare parts inquiry for your E-Drive. As soon as we have received your request, we will send you an individual offer.

Your spare part inquiry - it's that easy.

For the quick request: start with step 2.

  1. Click on the numbering of the spare part in the corresponding drawing. The component is highlighted in the table below until you select another replacement part.
  2. In the table, select the number of required spare parts.
    Tip: The number is one piece each (no packaging unit). If, for the attachment of a component, e.g. four screws are needed, increase the number to four.
  3. At the bottom of the page you will find the form in which you now enter your contact details - your selected spare parts have already been added automatically.
  4. Submit form - finished!

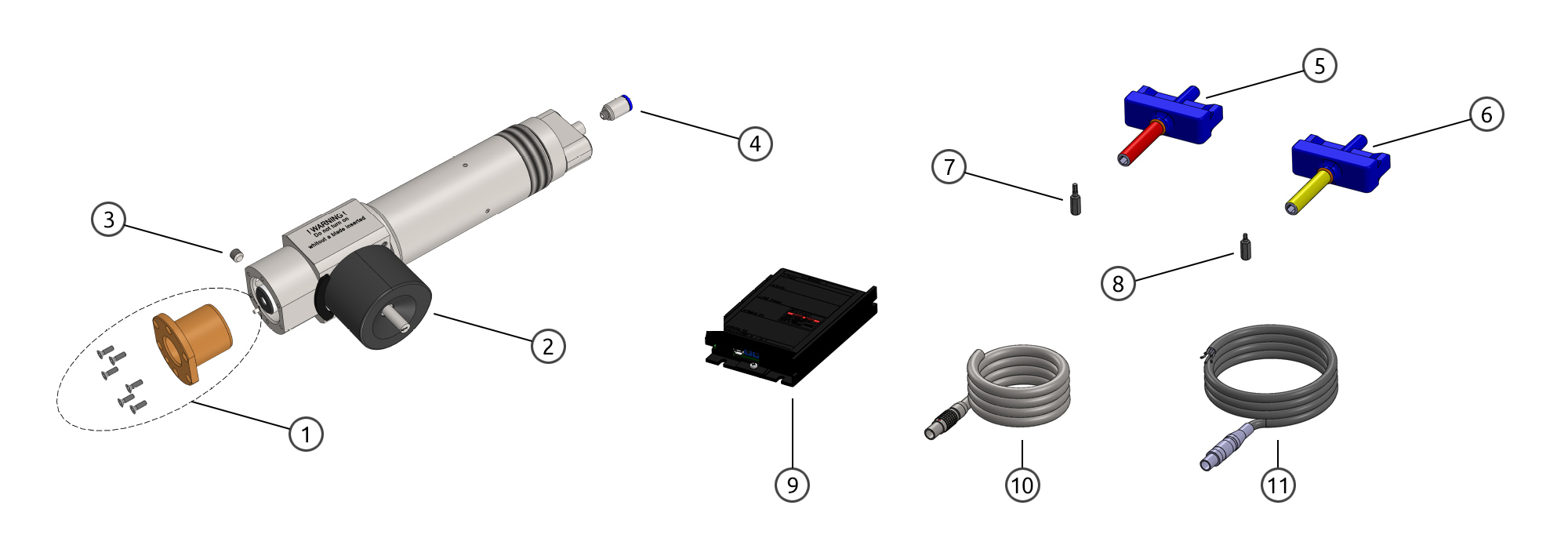

E-Drive spare parts
Pos. Part No. Title Pos. Part No. Title
1. 01800001 Bushing guide spare part kit 7. 04000051 Bit 3 mm
2. 04000111 Motor cover 8. 04000209 Bit TX8 mm
3. 04000005 Locking screw 9. 04000156 Servocontroller
4. 04000032 Pneumatic connector 10. 04000158 Motor connection cable 3-wire
5. 05000023 Torque wrench key 1,5 Nm [red] 11. 04000153 Motor connection cable 5-wire
6. 05000024 Torque wrench key 0,6 Nm [yellow]
