Spare Parts OSZ
At this point you have the opportunity to send us a spare parts inquiry for your OSZ drive and its expansion stages. As soon as we have received your request, we will send you an individual offer.
Your spare part inquiry - it's that easy.
For the quick request: start with step 2.
- Click on the numbering of the spare part in the corresponding drawing. The component is highlighted in the table below until you select another replacement part.
- In the table, select the number of required spare parts.
Tip: The number is one piece each (no packaging unit). If, for the attachment of a component, e.g. four screws are needed, increase the number to four. - At the bottom of the page you will find the form in which you now enter your contact details - your selected spare parts have already been added automatically.
- Submit form - finished!
OSZ Drive
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

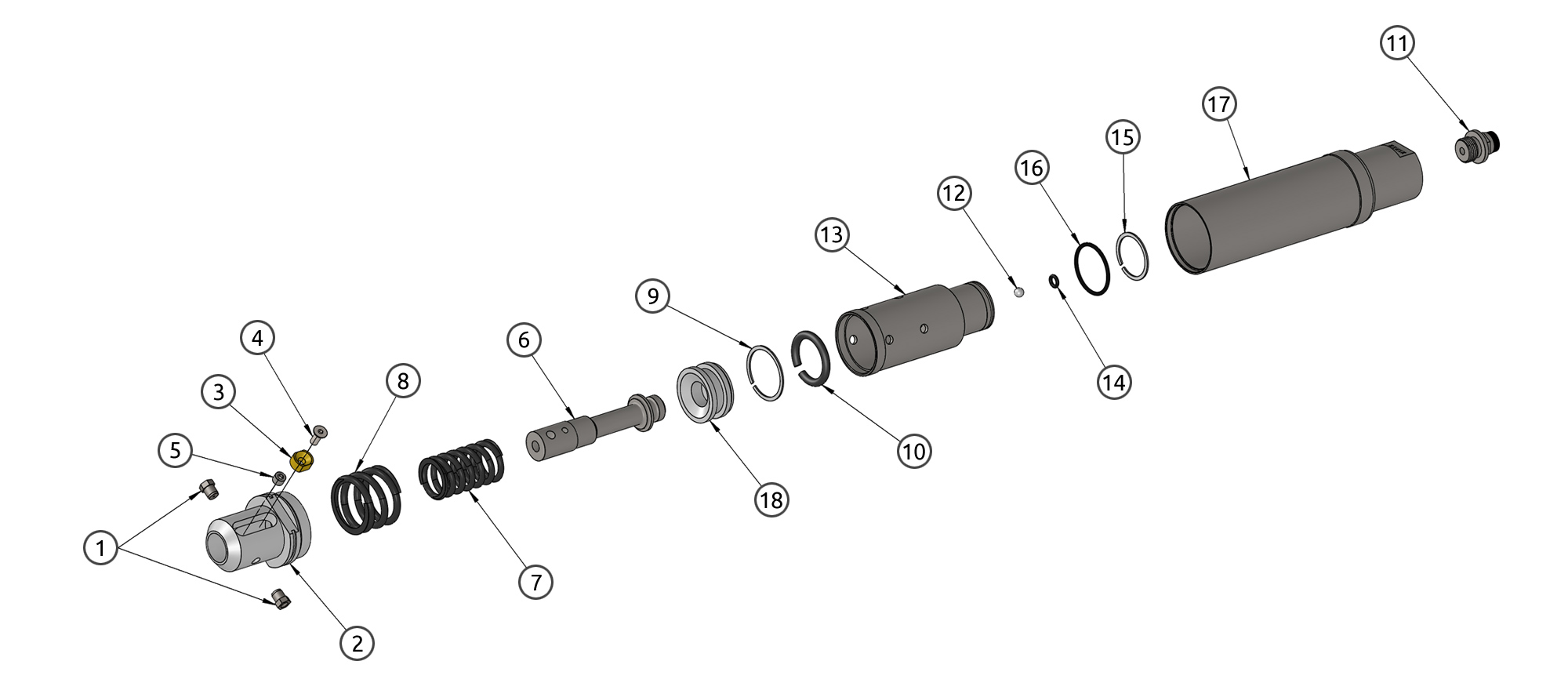

| Pos. | Part No. | Title | Pos. | Part No. | Title | ||
|---|---|---|---|---|---|---|---|
| 1. | 04000001 | Lubricating nipple | 10. | 04000010 | Space ring | ||
| 2. | 04000002 | Cover | 11. | 04000011 | Air connection | ||
| 3. | 04000003 | Guide plate | 12. | 04000012 | Ball | ||
| 4. | 04000004 | Counter sank screw | 13. | 04000013 | Cylinder | ||
| 5. | 04000005 | Locking screw M6x5 | 14. | 04000014 | Holding ring | ||
| 6. | 04000006 | Piston shaft D6 | 15. | 04000015 | Piston ring D26 | ||
| 7. | 04000007 | Spring, thin, long | 16. | 04000101 | O-Ring | ||
| 8. | 04000008 | Spring, thick, short | 17. | 05000001 | Housing | ||
| 9. | 04000009 | Piston ring D30 | 18. | 05000002 | Piston |
OSZ Variants
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

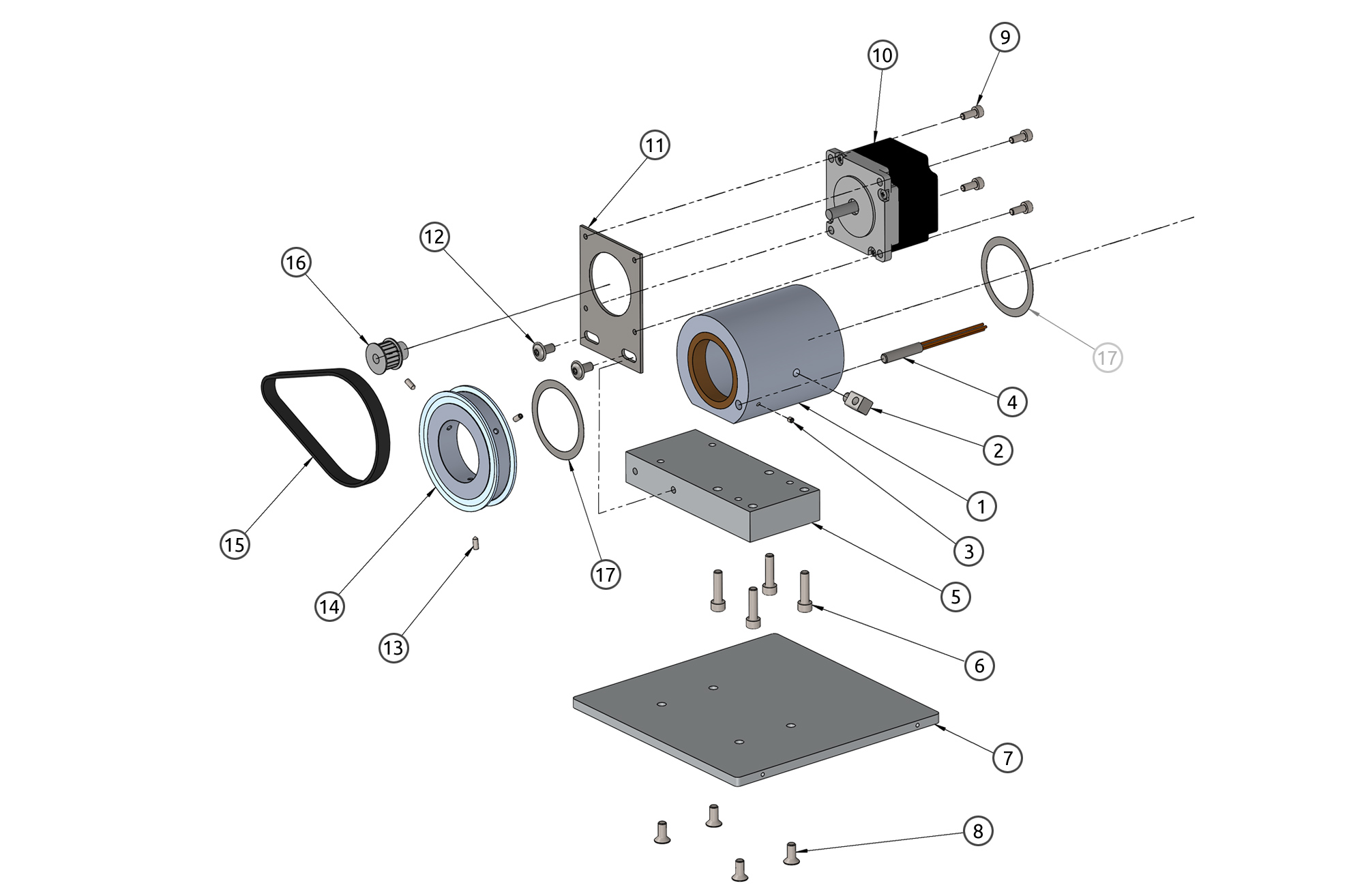

| Pos. | Part No. | Title | Pos. | Part No. | Title | ||
|---|---|---|---|---|---|---|---|
| 1. | 04000019 | Bearing housing | 10. | 04000092 | Stepping motor | ||
| 2. | 04000020 | Lubricating nipple 90° | 11. | 04000083 | Motor holding plate | ||
| 3. | 04000089 | Set screw | 12. | 04000154 | Lens flange screw | ||
| 4. | 04000081 | Magnet sensor | 13. | 04000022 | Set screw | ||
| 5. | 04000082 | Mounting plate | 14. | 05000003 | Toothed belt wheel | ||
| 6. | 04000088 | Hexagon socket screw | 15. | 04000091 | Toothed belt | ||
| 7. | 04000084 | Base plate | 16. | 04000090 | Toothed belt wheel - stepper motor | ||
| 8. | 04000085 | Counter sank screw | 17. | 04000102 | Adjusting washer | ||
| 9. | 04000087 | Hexagon socket screw |
