Pneumatical Oscillatory Drive

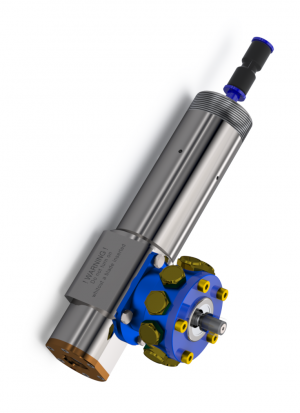

T Drive

Here speed connects with power and precision,

which cannot be found in this combination anywhere else in the world when ultrasonic should not or cannot be used.

Defined stroke depth and precise cuts are a matter of course here. (Link to sealing film)

In addition, 45° or 60° are possible with the swiveling version (link to the blue foam film)

The T-Drive cuts various materials at 12000 strokes / min with highest speed and performance. The two stroke options of either 1.6mm or 3.2mm contribute to the versatility of this drive.

This prevents cutting into the base material. The drive is integrated into the control system of the machine.

The T-Drive can be used for a wide range of materials such as cork, leather, foams, cardboard, corrugated board, honeycomb, and rubber. Even glass fibre is no problem.

  • Pneumatic
  • Defined cutting depth
  • 1.6mm  stroke
  • 12000 strokes / min
  • Ø6 mm knife positioning hole

The appropriate blades can be obtained from our partner BFT Hartmetall Werkzeuge.

All technical data at a glance are available for you here.
